मॉडल नं.: API 5CT J55
ब्रांड: बहुत अधिक
मानक: जीबी, एपीआई, बी एस, एएसटीएम, शोर, जिस
सामग्री: ST35-ST52, एपीआई J55-API P110, A53-A369, Q195-Q345, 10 # -45 #
खंड आकार: गोल
उत्पत्ति का स्थान: चीन
आवेदन: गैस पाईप, तेल पाइप, द्रव पाइप
उत्पादन की प्रक्रिया: गरम किया
प्रमाणीकरण: एपीआई, सी.ई.
विशेष ट्यूब: एपीआई पाइप
चाहे मिश्रधातु: गैर मिश्र
सहनशीलता: ± 1%
वर्ग: समेकित स्टील पाइप
प्रसंस्करण सेवा: झुकने, वेल्डिंग, काढ़ा, छिद्रण, काट रहा है
मानक: API 5CT
Steel Grade: J55/K55/N80/L80/P110
OD: 1.9''-20''
Wall Thickness: 0.125''-0.514''
Length: R1, R2, R3
पैकेजिंग: मानक शिपिंग पैकेजिंग, या ग्राहक की जरूरतों के अनुसार
उत्पादकता: 10000 Tons Per Month
परिवहन: Ocean,Land,Express
उद्गम-स्थान: चीन
के बारे में समर्थन करना: 10000 Tons Per Month
प्रमाण पत्र: ISO 9001
एचएस कोड: 7304199000
भुगतान प्रकार: T/T,L/C,D/P
इंकोटर्म: FOB,CFR,CIF,EXW

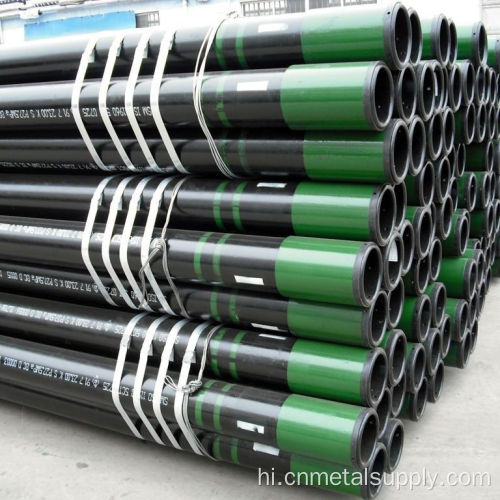

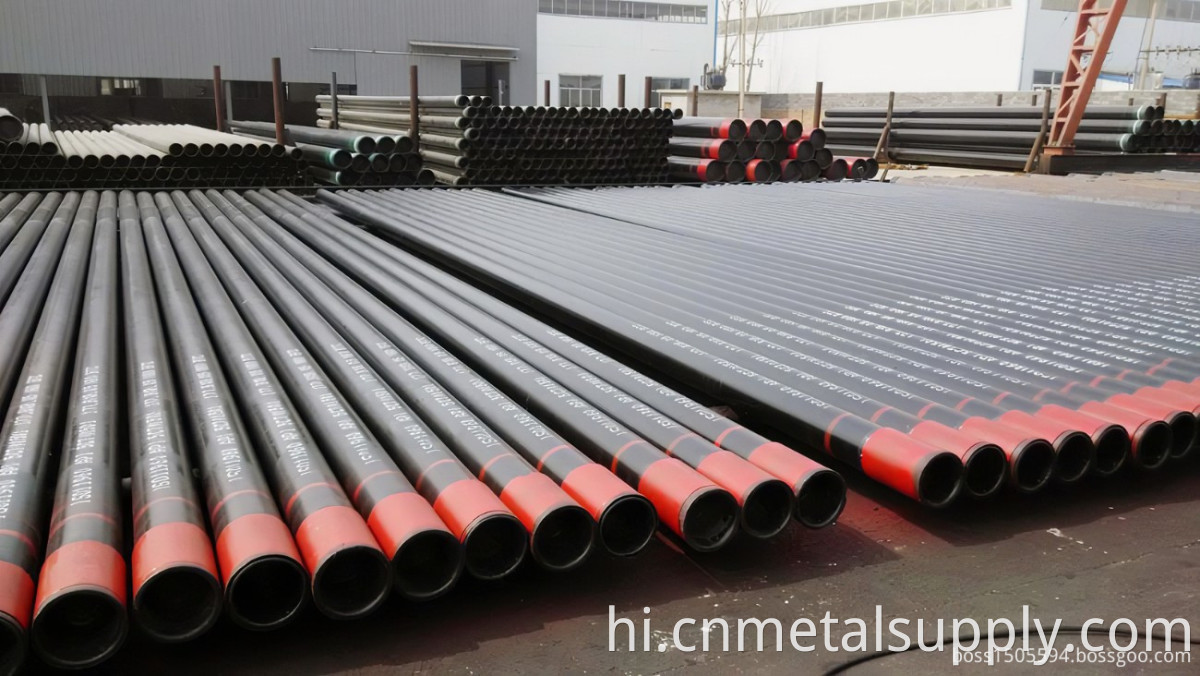

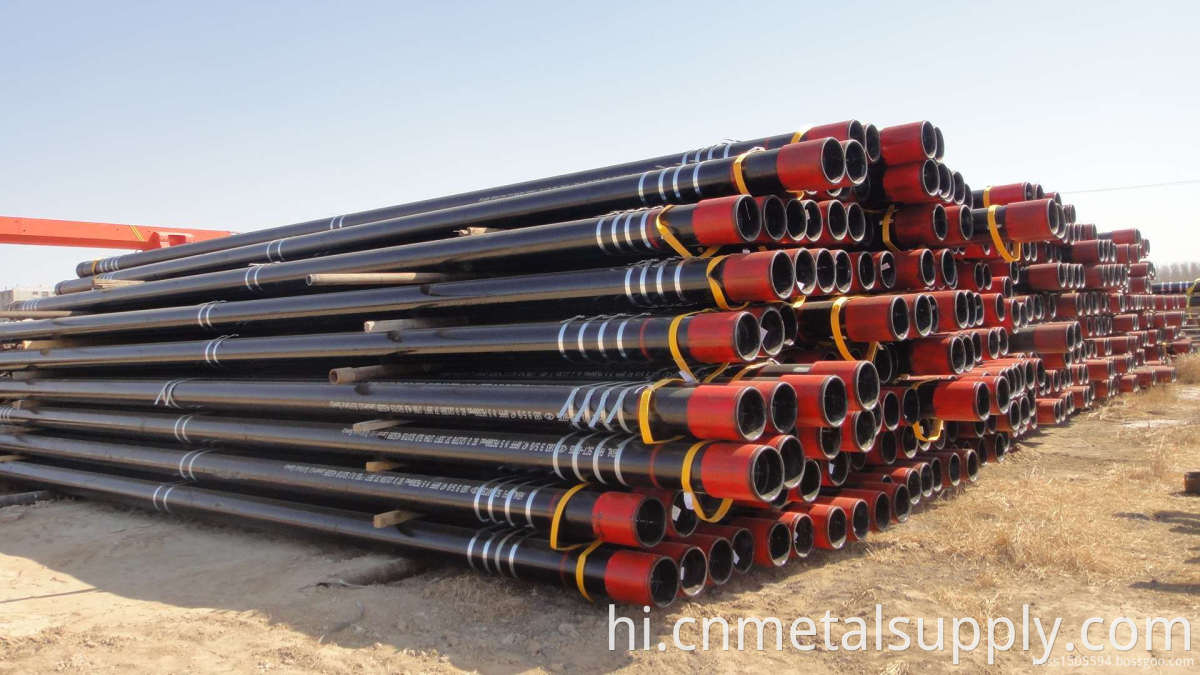

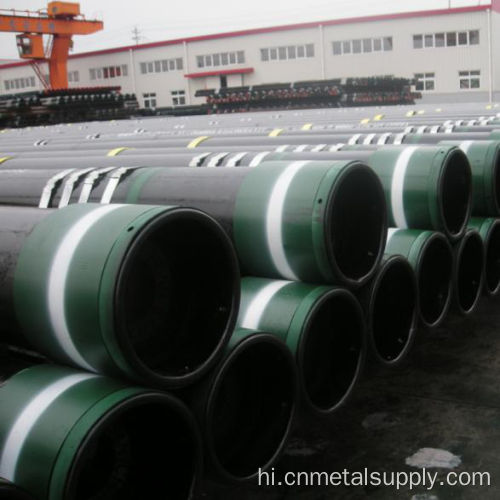

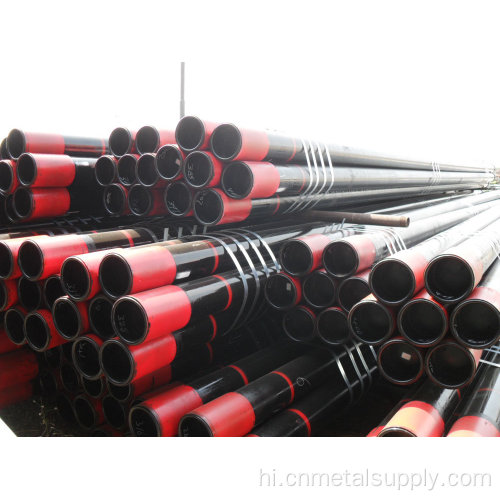

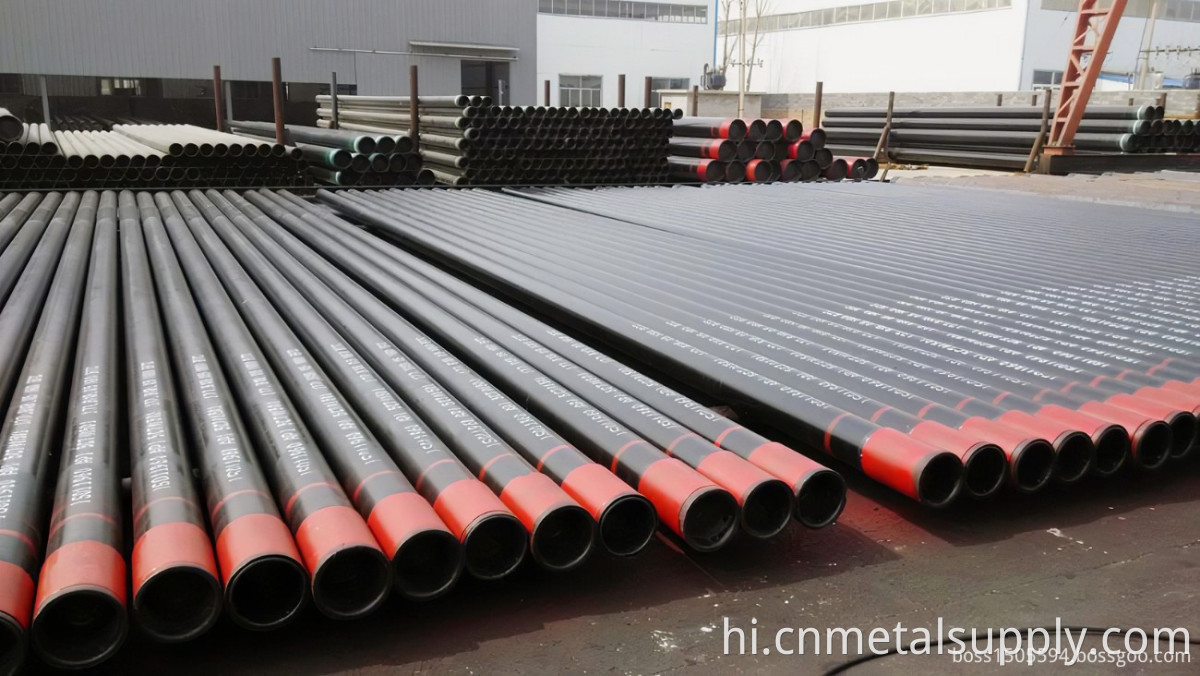

कैसिंग पाइप का उपयोग अक्सर भूमिगत निर्माण परियोजनाओं में उपयोगिता लाइनों को क्षतिग्रस्त होने से बचाने या बचाने के लिए किया जाता है।
6. परीक्षण: एनडीटी आदि एपीआई 5CT और 5 बी के संबंधित नियम
7. टाइप: निर्बाध पाइप
|
Product Name |
API 5CT Oil Casing Pipe |
|
|
Standard |
API5CT, Gr.B ASTM A106, A53 Gr.B ASTM, ANSI A210-1996, ANSI B36.10M-2004, ASTM A1020-2002, ASTM A179-1990, BS 3059-2, DIN 17175, DIN 1630, DIN 2448 |
|
|
Steel Grade |
H40, J55, K55, M65, N80, L80, C90, C95, T95, C110, P110, Q125, GR.A, GR.B, GR.C, ST35, ST37, ST42, ST45, ST52, SS304, SS316 etc. |
|
|
Size |
Outer Diameter |
114.30mm -508.00mm |
|
Wall Thickness |
5.21mm-16.13mm |
|
|
Length |
R1:4.88-7.62m; R2:7.62-10.36m; R3:10.36-12.80m; Less than 12m, or as buyer's requirements |
|
|
Certificates |
API5CT, ISO 9001: 2015 |
|
|
Surface Treatment |
black paint, varnish, oil, galvanized, anti corrosion coatings |
|
|
Marking |
Standard marking, or according to your request. |
|
|
Pipe Ends |
Under 2 inch plain end. 2 inch and above Beveled. Plastic caps (small OD) ,Iron protector (large OD) |
|
|
Packaging |
Loose package; Packaged in bundles(2Ton Max); bundled pipes with two slings at the both end for easy loading and discharging; End with Plastic caps; Wooden cases.Or as buyer’s requirements. |
|
|
Test |
Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, hydraulic testing, X-ray Test. |
|
|
Application |
oil pipe; gas pipe; water pipe; sewage Transport |
|
|
Advantages |
1.Reasonable price with excellent quality 2.Abundant stock and prompt delivery 3.Rich supply and export experience, sincere service 4.Reliable forwarder, 2-hour away from port. |
|
|
Port of Shipment |
Tianjin Port,Tianjin, China |
|
|
Date of Delivery |
Shipped in 10 days after payment |
|
आवरण पाइप की रासायनिक रचनाएँ
|
Standard |
Grade |
Chemical compositions(%) |
|||||||||
|
API SPEC 5CT |
J55 |
C |
Si |
Mn |
P |
S |
Cr |
Ni |
Cu |
Mo |
V |
|
K55 |
0.34~0.39 |
0.20~0.35 |
1.25~1.50 |
≤0.020 |
≤0.015 |
≤0.15 |
≤0.20 |
≤0.20 |
/ |
/ |
|
|
N80 |
0.34~0.38 |
0.20~0.35 |
1.45~1.70 |
≤0.020 |
≤0.015 |
≤0.15 |
/ |
/ |
/ |
0.11~0.16 |
|
|
L80 |
0.15~0.22 |
≤1.00 |
0.25~1.00 |
≤0.020 |
≤0.010 |
12.0~14.0 |
≤0.20 |
≤0.20 |
/ |
/ |
|
|
P110 |
0.26~0.395 |
0.17~0.37 |
0.40~0.70 |
≤0.020 |
≤0.010 |
0.80~1.10 |
≤0.20 |
≤0.20 |
0.15~0.25 |
≤0.08 |
|
आवरण पाइप के यांत्रिक गुण
|
Steel Grade |
Type |
Yield Strength Mpa |
Tensile Strength (min) Mpa |
Hardness (min) |
||
|
min |
max |
HRC |
HBW |
|||
|
J55 |
- |
379 |
552 |
517 |
- |
- |
|
K55 |
- |
379 |
552 |
655 |
- |
- |
|
N80 |
1 |
552 |
758 |
689 |
- |
- |
|
Q |
552 |
758 |
689 |
- |
- |
|
|
L80 |
1 |
552 |
655 |
655 |
23 |
241 |
|
9Cr |
552 |
655 |
655 |
23 |
241 |
|
|
13Cr |
552 |
655 |
655 |
23 |
241 |
|
|
C90 |
|
621 |
724 |
689 |
25.4 |
255 |
|
C95 |
- |
655 |
758 |
724 |
- |
- |
|
T95 |
|
655 |
758 |
724 |
25.4 |
255 |
|
P110 |
- |
758 |
965 |
862 |
- |
- |
|
Q125 |
All |
862 |
1034 |
931 |
- |
- |
| Sizes |
OD D mm |
Weight kg/m |
WT t mm |
Type of end | ||||||||
| H40 |
J55 K55 |
M65 |
L80 C95 |
N80 1、Q |
C90 T95 |
P110 | Q125 | |||||
| 1 | 2 | |||||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 |
|
4-1/2 4-1/2 4-1/2 4-1/2 4-1/2 |
9.50 10.50 11.60 13.50 15.10 |
114.30 114.30 114.30 114.30 114.30 |
14.14 15.63 17.26 20.09 22.47 |
5.21 5.69 6.35 7.37 8.56 |
PS - - - - |
PS PSB PSLB - - |
PS PSB PLB PLB - |
- - PLB PLB - |
- - PLB PLB - |
- - PLB PLB - |
- - PLB PLB PLB |
- - - - PLB |
|
5 5 5 5 5 5 5 |
11.50 13.00 15.00 18.00 21.40 23.20 24.10 |
127.00 127.00 127.00 127.00 127.00 127.00 127.00 |
17.11 19.35 22.32 26.79 31.85 34.53 35.86 |
5.59 6.43 7.52 9.19 11.10 12.14 12.70 |
- - - - - - - |
PS PSLB PSLBE - - - - |
PS PSLB PLB PLB PLB - - |
- - PLBE PLBE PLB PLB PLB |
- - PLBE PLBE PLB PLB PLB |
- - PLBE PLBE PLB PLB PLB |
- - PLBE PLBE PLB PLB PLB |
- - - PLBE PLB PLB PLB |
|
5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 5-1/2 |
14.00 15.50 17.00 20.00 23.00 26.80 29.70 32.60 35.30 38.00 40.50 43.10 |
139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70 139.70 |
20.83 23.07 25.30 29.76 34.23 39.88 44.20 48.51 52.53 56.55 60.27 64.14 |
6.20 6.98 7.72 9.17 10.54 12.70 14.27 15.88 17.45 19.05 20.62 22.22 |
PS - - - - - - - - - - - |
PS PSLBE PSLBE - - - - - - - - - |
PS PSLB PLB PLB PLB - - - - - - - |
- - PLBE PLBE PLBE - - - - - - - |
- - PLBE PLBE PLBE - - - - - - - |
- - PLBE PLBE PLBE P P P P P P P |
- - PLBE PLBE PLBE - - - - - - - |
- - - - PLBE - - - - - - - |
|
6-5/8 6-5/8 6-5/8 6-5/8 |
20.00 24.00 28.00 32.00 |
168.28 168.28 168.28 168.28 |
29.76 35.72 41.67 47.62 |
7.32 8.94 10.59 12.06 |
PS - - - |
PSLB PSLBE - - |
PSLB PLB PLB - |
- PLBE PLBE PLBE |
- PLBE PLBE PLBE |
- PLBE PLBE PLBE |
- PLBE PLBE PLBE |
- - - PLBE |
|
7 7 7 7 7 7 7 |
17.00 20.00 23.00 26.00 29.00 32.00 35.00 |
177.80 177.80 177.80 177.80 177.80 177.80 177.80 |
25.30 29.76 34.23 38.69 43.16 47.62 52.09 |
5.87 6.91 8.05 9.19 10.36 11.51 12.65 |
PS PS - - - - - |
- PS PSLBE PSLBE - - - |
- PS PLB PLB PLB PLB - |
- - PLBE PLBE PLBE PLBE PLBE |
- - PLBE PLBE PLBE PLBE PLBE |
- - PLBE PLBE PLBE PLBE PLBE |
- - - PLBE PLBE PLBE PLBE |
- - - - - - PLBE |
|
7 7 7 7 7 7 |
38.00 42.70 46.40 50.10 53.60 57.10 |
177.80 177.80 177.80 177.80 177.80 177.80 |
56.55 63.54 69.05 74.56 79.77 84.97 |
13.72 15.88 17.45 19.05 20.62 22.22 |
- - - - - - |
- - - - - - |
- - - - - - |
PLBE - - - - - |
PLBE - - - - - |
PLBE P P P P P |
PLBE - - - - - |
PLBE - - - - - |
|
7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 7-5/8 |
24.00 26.40 29.70 33.70 39.00 42.80 45.30 47.10 51.20 55.30 |
193.68 193.68 193.68 193.68 193.68 193.68 193.68 193.68 193.68 193.68 |
35.72 39.29 44.20 50.15 58.04 63.69 67.41 70.09 76.19 82.30 |
7.62 8.33 9.52 10.92 12.70 14.27 15.11 15.88 17.45 19.05 |
PS - - - - - - - - - |
- PSLBE - - - - - - - - |
- PSLB PLB PLB - - - - - - |
- PLBE PLBE PLBE PLBE PLB PLB PLB - - |
- PLBE PLBE PLBE PLBE PLB PLB PLB - - |
- PLBE PLBE PLBE PLBE PLB PLB PLB P P |
- - PLBE PLBE PLBE PLB PLB PLB - - |
- - - - PLBE PLB PLB PLB - - |
| 7-3/4 | 46.10 | 196.85 | 68.60 | 15.11 | - | - | - | P | P | P | P | P |
|
8-5/8 8-5/8 8-5/8 8-5/8 8-5/8 8-5/8 8-5/8 |
24.00 28.00 32.00 36.00 40.00 44.00 49.00 |
219.08 219.08 219.08 219.08 219.08 219.08 219.08 |
35.72 41.67 47.62 53.57 59.53 65.48 72.92 |
6.71 7.72 8.94 10.16 11.43 12.70 14.15 |
- PS PS - - - - |
PS - PSLBE PSLBE - - - |
PS PS PSLB PSLB PLB - - |
- - - PLBE PLBE PLBE PLBE |
- - - PLBE PLBE PLBE PLBE |
- - - PLBE PLBE PLBE PLBE |
- - - - PLBE PLBE PLBE |
- - - - - PLBE |
|
9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 9-5/8 |
32.30 36.00 40.00 43.50 47.00 53.50 58.40 59.40 64.90 70.30 75.60 |
244.48 244.48 244.48 244.48 244.48 244.48 244.48 244.48 244.48 244.48 244.48 |
48.07 53.57 59.53 64.73 69.94 79.62 86.91 88.40 96.58 104.62 112.50 |
7.92 8.94 10.03 11.05 11.99 13.84 15.11 15.47 17.07 18.64 20.24 |
PS PS - - - - - - - - - |
- PSLB PSLBE - - - - - - - - |
- PSLB PSLB PLB PLB - - - - - |
- - PLBE PLBE PLBE PLBE PLB - - - - |
- - PLBE PLBE PLBE PLBE PLB - - - - |
- - PLBE PLBE PLBE PLBE PLB P P P P |
- - - PLBE PLBE PLBE PLB - - - - |
- - - - PLBE PLBE PLB - - - - |
|
10-3/4 10-3/4 10-3/4 10-3/4 10-3/4 10-3/4 10-3/4 |
32.75 40.50 45.50 51.00 55.50 60.70 65.70 |
273.05 273.05 273.05 273.05 273.05 273.05 273.05 |
48.74 60.27 67.71 75.90 82.59 90.33 97.77 |
7.09 8.89 10.16 11.43 12.57 13.84 15.11 |
PS PS - - - - - |
- PSB PSBE PSBE - - - |
- PSB PSB PSB PSB - - |
- - - PSBE PSBE - - |
- - - PSBE PSBE - - |
- - - PSBE PSBE PSBE PSB |
- - - PSBE PSBE PSBE PSB |
- - - - - PSBE PSB |
|
10-3/4 10-3/4 10-3/4 |
73.20 79.20 85.30 |
273.05 273.05 273.05 |
108.93 117.86 126.94 |
17.07 18.64 20.24 |
- - - |
- - - |
- - - |
- - - |
- - - |
P P P |
- - - |
- - - |
|
11-3/4 11-3/4 11-3/4 11-3/4 11-3/4 11-3/4 |
42.00 47.00 54.00 60.00 65.00 71.00 |
298.45 298.45 298.45 298.45 298.45 298.45 |
62.50 69.94 80.36 89.29 96.73 105.66 |
8.46 9.53 11.05 12.42 13.56 14.78 |
PS - - - - - |
- PSB PSB PSB - - |
- PSB PSB PSB - - |
- - - PSB P P |
- - - PSB P P |
- - - PSB P P |
- - - PSB P P |
- - - PSB P P |
|
13-3/8 13-3/8 13-3/8 13-3/8 13-3/8 |
48.00 54.50 61.00 68.00 72.00 |
339.72 339.72 339.72 339.72 339.72 |
71.43 81.10 90.78 101.19 107.15 |
8.38 9.65 10.92 12.19 13.06 |
PS - - - - |
- PSB PSB PSB - |
- PSB PSB PSB - |
- - - PSB PSB |
- - - PSB PSB |
- - - PSB PSB |
- - - PSB PSB |
- - - - PSB |
|
16 16 16 16 |
65.00 75.00 84.00 109.00 |
406.40 406.40 406.40 406.40 |
96.73 111.61 125.01 162.21 |
9.53 11.13 12.57 16.66 |
PS - - - |
- PSB PSB P |
- PSB PSB - |
- - - P |
- - - P |
- - - - |
- - - P |
- - - P |
| 18-5/8 | 87.50 | 473.08 | 130.21 | 11.05 | PS | PSB | PSB | - | - | - | - | - |
|
20 20 20 |
94.00 106.50 133.00 |
508.00 508.00 508.00 |
139.89 158.49 197.93 |
11.13 12.70 16.13 |
PSL - - |
PSLB PSLB PSLB |
PSLB PSLB - |
- - - |
- - - |
- - - |
- - - |
- - - |
| Remarks: P——Plain end;S—Short round thread;L—Long round thread;B—Buttress thread;E—Extreme-line. | ||||||||||||
